Timber Fixing Plate with Bolt and Washer

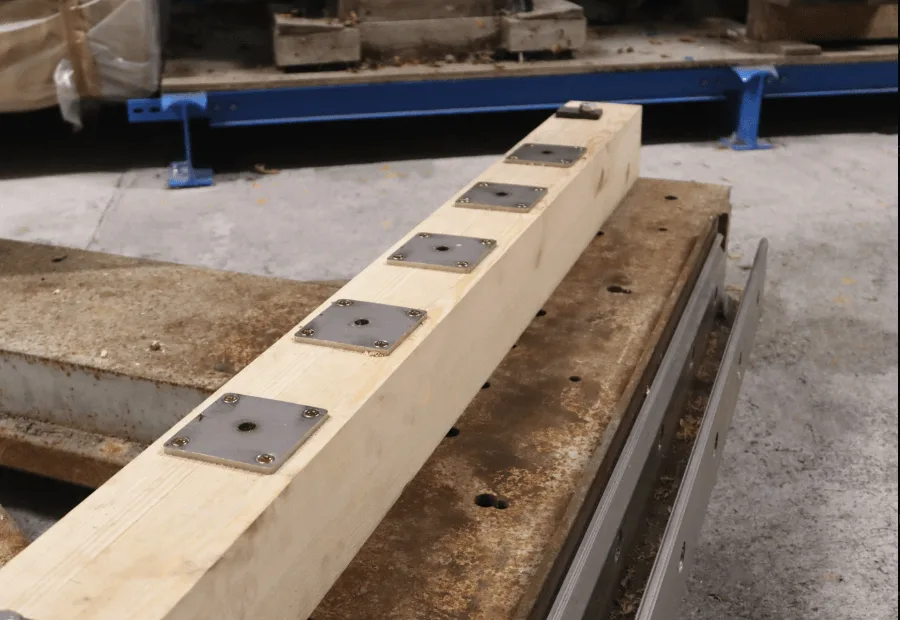

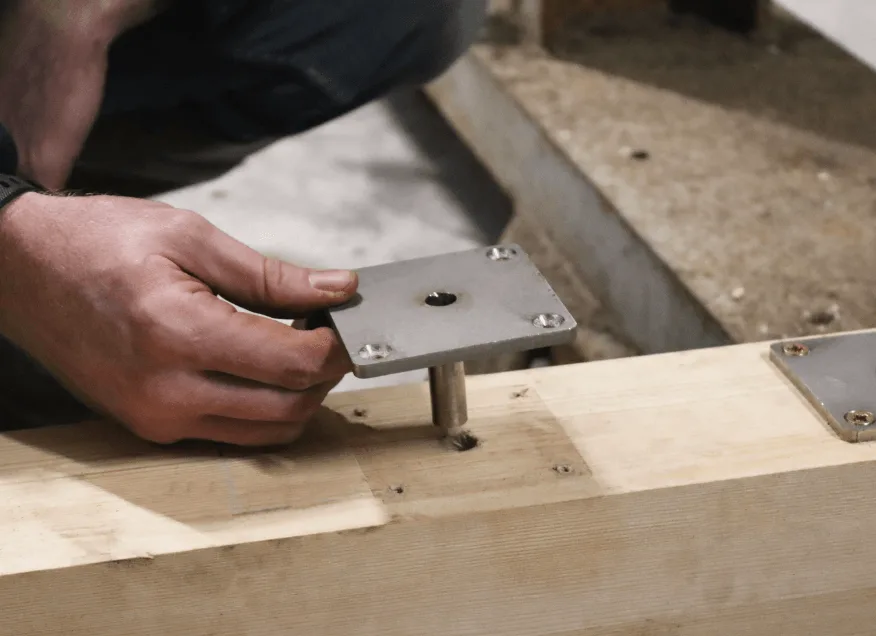

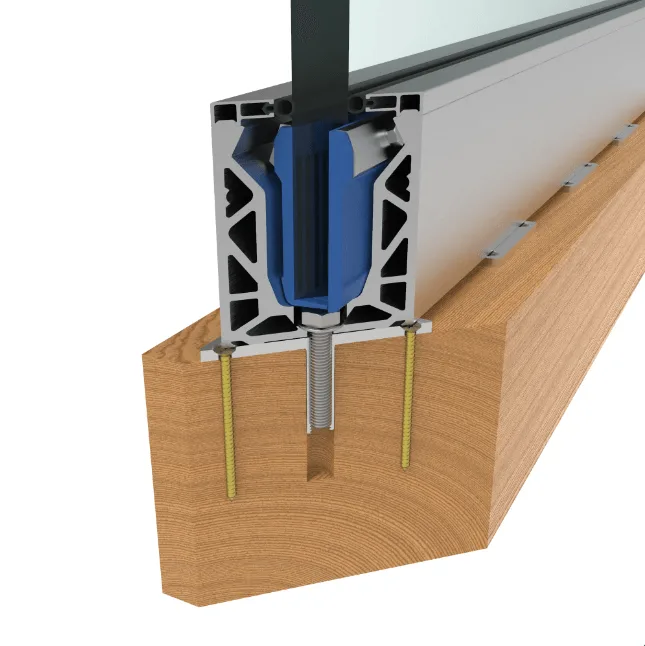

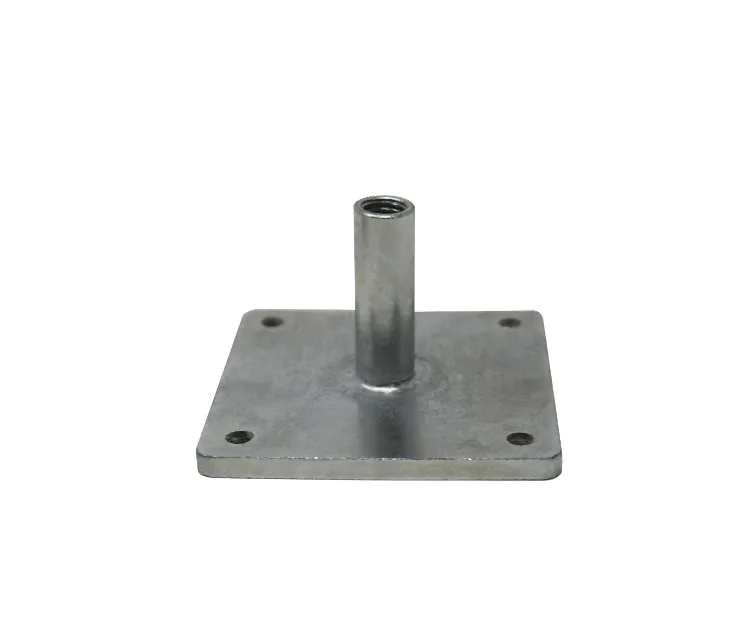

The patented Fixing Plate has been designed to provide a solid fixing where the substrate is timber. It is a square plate with a threaded sleeve in the centre which holds on to the balustrade channel. The Timber Fixing Plates are fixed to the timber using four 6x100mm wood screws. The plates have a 20 microns thick zinc plating which makes them suitable for outdoor use. It’s possible to rebate squares out of the timber to recess the Timber Fixing Plates, lay the waterproof membrane over the top and use the BalconySeal system on the top for a waterproof installation. The timber plates have been tested to suit domestic balustrades/balconies up to 1200mm high (0.74kN line load to BS 6180). The wood is required to be a minimum width of 100mm and depth of 120mm.

All of StairFurb’s Glass Balustrade Kits are designed and manufactured with DIY in mind. We’ve got easy-to-follow video instructions in our Fitting Guides. For customers that don’t want to install out kits themselves we’ve got help at hand across most of the UK. Use our Find Your Fitter function to see who can help you.
